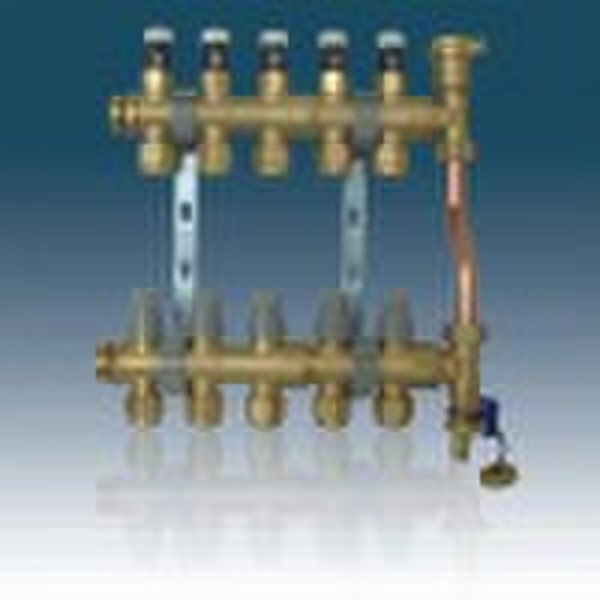

Modularized Manifold

Modularized Manifold/Manifold Fitting/Pipe Fittings 1.Summary HF218 series of modularization intelligent water circulation fittings are specially designed for hot water and floor radiant heating system, integrated design for main pipe and branch can availably avoid the leakage of the connection. The static flow control valve with adjustment calibration of the distributed water pipe can accurately control the flux of each branch, which can make the energy distribution of the floor-heating system more effective 2. Characteristic 1) Material Main Material: Casting Brass The Material of Outlet: Casting Brass Seal Element: EPDM The Material of Flow Control Valve: ABS The Material of Valve Stem: stainless steel(1CR18NI9) 2)Technique Parameter Medium: cold water, hot water or 50% glycol water liquor Max. Working Pressure: 1.0Mpa Water Temperature: 0-85oC The Indicated Number of Flux Control Kv Value : 0-10 Adjustive Precision: ±5% Main Pipe Caliber: DN25 Branch Caliber: 3/4"DN20 Branch Spacing: 50mm 3) water power and flow characteristics The flow coefficient Kv value of the static flow control valve The flow coefficient Kv value of the control valve core The flow coefficient Kv value of the distributed water main pipe The flow coefficient Kv value of the catchment main pipe The Local Resistance Coefficient value of the distributed water main pipe The Local Resistance Coefficient value of the catchment main pipe
