Integrated Manifold

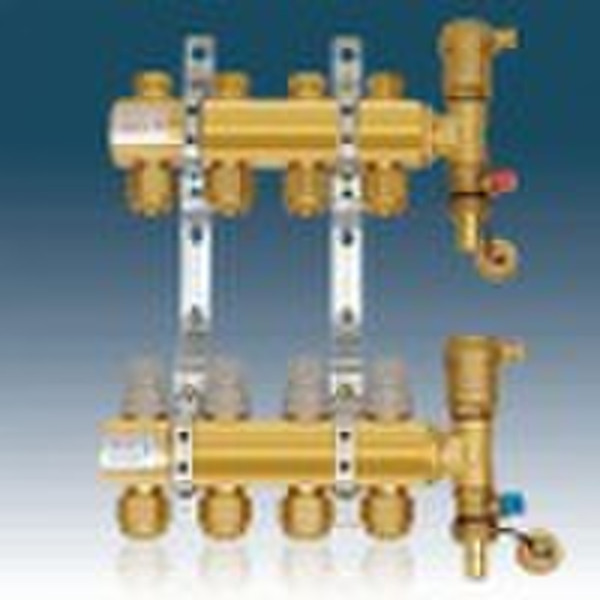

Integrated Manifold/Manifolds/Pipe Fitting 1. Summary HF216B series of water circulation fittings are designed and produced according to the international floor-heating industry technical standard, have been passed standard of 0.6Mpa of water pressure and 1.0Mpa of air pressure. Have set four kinds of configuration with different functions according to the users requirement, the choice is very agile. 2. Function Explanation The distributed water pipe with inner hexagonal type of flux control valve. Each loop of the catchment pipe with an independent manual spiral cover, you can install the actuators on it after downloading the spiral cover. 3.Installation Spec The structure of HF216B series of intelligent manifold fittings is pre- assemble type. It is very convenient to install by users. When installing, please pay attention to supply water by the distributed water pipe, and return water by the catchment pipe. The location of installation should be a place where is easy to manipulate and adjust for test and detection. If you find there is leakage phenomenon of the connection port when adjusting the system, please enlace it by PTFE tape first, then lock it. When you connect the manifold fittings with other pipes, please do not use big force, or else it may damage the pipes of manifold fittings.
